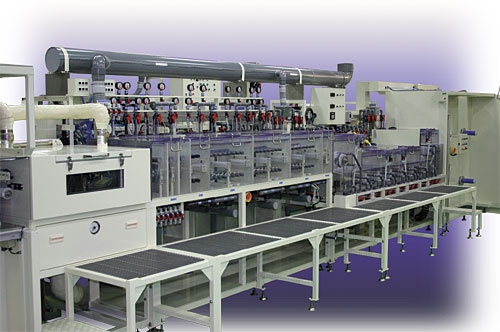

Developer

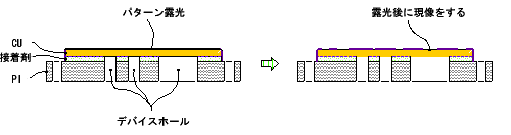

Equipments which does develop process after wiring pettern exposure
※Click to enlarge
【Characteristics】
【Specification】
| Lane layout | 2 Lanes |
|---|---|
| Transfer speed | 2.0m／min |
| Material width | TAB／CSP／COF 35mm～160mm （FPC 250～300mm） |
| Material thickness | PI 25μm～ |
| Processed surface | One side or both side |
| Process flow | Unwinder～Developer～Wet cleaning～Water cut～Dry～Winder |
| Utility | Electric power AC200V・220V / 50Hz・60Hz City water, DI water, Cooling water, Scrubber, Heat exhaust, (steam) |
| Equipment size | 17mL×2mW×2.5mH（approximate） ※Independent control panel and incidental facility |
