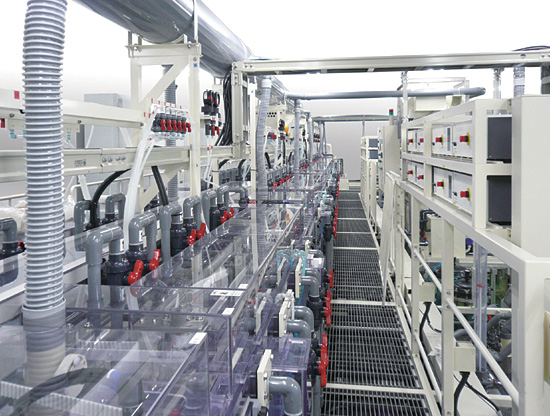

Plating equipments
※Click to enlarge
【Characteristics】

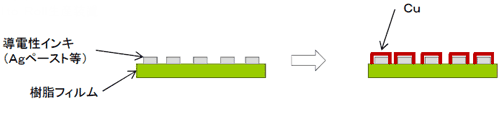

This equipments electroless-plates on "conoductive base" formed in resin film. With our original technic it transfers thin material without damage and crinkle.

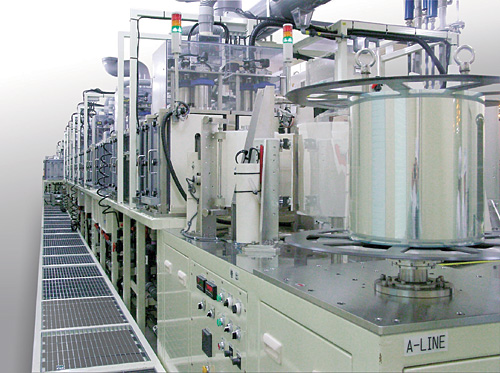

Equipment length can be shorten with adopting UP・DOWN・U turn layout.
【Specification】
| Lane layout | 1Lane |
|---|---|
| Transfer speed | 0.5m／min （ MAX 1.5m／min） |
| Material width | MAX 600mm |
| Material thickness | 50μm～ |
| Processed surface | One side or both side |
| Process flow | Unwinder～Stripping～Wet cleaning～Water cut～Drying～Winder |
| Utility | Electric power（ AC200・220V／50・60HZ ）、DI water, City water, Cooling water, Scrubber, Heat exhaust,
(Steam) |
| Equipment size | 15m（L） × 2m（W） × 2.5m（H） ※excluding touch panel・incidental facilities |
