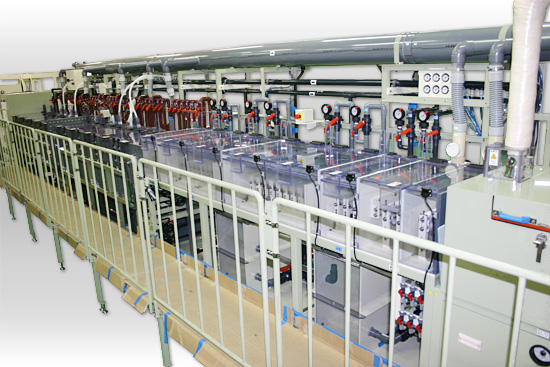

Eetcher 1
This equipments etches metal foil surface (AL etc).
It roll transfers and etches continuously thin and very fragile material without damage and crimple with our original low tention technique.
※Click to enlarge
【Characteristics】
【Specification】
| Lane layout | 1Lane |
|---|---|
| Transfer speed | 5.0m／min |
| Material width | MAX 310mm |
| Material thickness | 20μm～ |
| Processed surface | One side or both side |
| Process flow | Unwinder ～ Etching ～ Cleaning ～ Drying ～ Winder |
| Utility | Electric power（ AC200・220V／50・60HZ ）、 DI water, City water, Cooling water, Scrubber, Heat exhaust, (Steam) |
| Equipment size | 15m（L） × 2m（W） × 2.5m（H） ※Excluding touch panel・incidental facilities |
Etcher 2

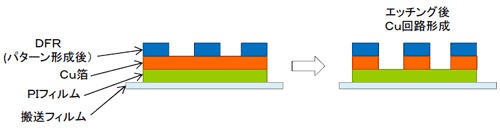

This equipment transfer thin single substrate such as FPC by Roll to Roll and etches continuously.
Excellent accuracy control of detergent tempearture and pressure.
※Click to enlarge
【Chracteristics】
【Specification】
| Lane layout | 1Lane |
|---|---|
| Transfer speed | 1.5m／min |
| Material width | MAX 350mm |
| Material thickness | 50μm～ |
| surface to etch | Only one side |
| Process flow | Unwinder（Loader）～ Laminate ～ Etching ～ Wet cleaning ～ Acid cleaning ～ Wet cleaning ～ Winder（substrate peeling） ～ Wet cleaning ～ Drying ～ Substrate stacker |
| Utility | Electric power（ AC200・220V／50・60HZ ）、 DI water, City water, CDA, Cooling water, Scrubber, Heat exhaust, (Steam) |
| Equipment size | 10．0m（L） × 3.0m（W） × 3.0m（H） ※excluding touch panel・incidental facilities |
